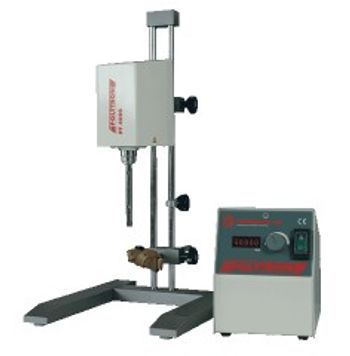

Kinematica - POLYTRON PT 4000
Manufactured by Kinematica
No Documents
powerful, high speed, low noise, low maintenance
The POLYTRON PT 4000 HIGH END LINE system belongs within the KINEMATICA homogenizer product range to the benchtop models for small to medium sized applications in the range of approx. 0.1 - 2500 ml. This unit with its unique features will improve already known applications and enter new areas of applications. This will be achieved by much higher tip speeds i.e. by adjustable rotor speeds up to 40'000 rpm. Thus results will be obtained with even finer and smaller droplets/particles.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of POLYTRON PT 4000
- 500 W powerful, wearless three phase high frequency motro for continuous operation
- this motor is controlled by a frequency inverter which allows a connection to a stadard 230V wall socket
- electronic speed regulation and stabilization
- soft start and thermal overload protection (PTC)
- variable speeds up to 40'000 rpm with visual indication
- noise level lower than <70 dB (A)
- quick coupling for fast change of the dispersing aggregate
- 6 different dispersing aggregates in Easy Clean EC design
- practical H-shaped security stand
- large collection of dispersing vessels and accessories
- CE label
- dispersing, homogenizing, extractions, cell disruption, mixing, emulsifying, suspending
General Specifications
| Sample Volume | 0.1 to 2500 ml |
| Power Requirements | 230V/115V, 50/60 Hz |
| Peak Power | 500 W High frequency drive |
| Noise Level | 70 dB at 40‘000 rpm |
| Speed Range | 0 to 40000 rpm |
| Homogenizer Type | Mechanical |
Additional Specifications
Speed regulation: integrated frequency inverter, speed stabilisation, thermal overload protection (PTC)
Speed display: LED
Environment: 0-40°C, 95% rel. humidity
Protection class: IP 20
