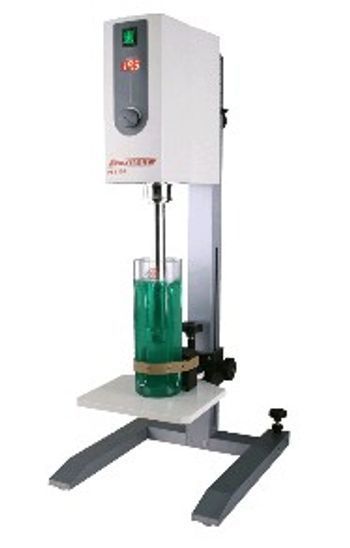

Kinematica - POLYTRON PT 6100
Manufactured by Kinematica
No Documents
Digital High-End Benchtop homogenizer, powerful, versatile
The POLYTRON® PT 6100 system with its powerful 1700 Watt drive can be equipped with more than 40 different POLYTRON® dispersing aggregates according to the rotor/stator principle. Therefore the PT 6100 System offers its user solutions for a wide range of dispersing and homogenizing applications with volumes in between approx. 100 ml and 30 000 ml.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of POLYTRON PT 6100
- Powerful 1700 watt drive
- Up to 24 000 min-1 and up to approx. 50 m/s tip speed
- Sound-proof to approx. 80 dB A
- Intelligent control with LED display for speed indication
- Soft-start, overload protection and speed stabilisation
- Safety quick-coupling
- More than 40 different and interchangeable dispersing aggregates
- PC connection with the Intelligent Cable
General Specifications
| Sample Volume | 0.25 to 30000 ml |
| Power Requirements | 230V/50 Hz or 115V/60 Hz |
| Peak Power | 1700 W Leistung |
| Noise Level | 80 dB at 24‘000 rpm |
| Weight | 7 kg |
| Speed Range | 0 to 24000 rpm |
| Motor | Universal |
| Homogenizer Type | Mechanical |
Additional Specifications
Speed display: Integrated electronic speed regulation,
Soft-Start, LED-Display
Dimensions: 360 x 164 x 313 mm
Environment: 0-40°C, 95% rel. humidity
Protection class: IP 20
